Product Specification – RFID Cable Tie Tag

1. Product Overview
This is a one-time self-locking RFID cable tie tag. It can be equipped with HF or UHF chip, compliant with international protocols for global use. With anti-tamper structure, printed serial number & QR code, widely used for asset management and production control.

2. Physical Parameters

• Material: PP / ABS plastic

• Structure: One-time self-locking, tamper-evident

• Printing: Laser marking / Silk printing (Serial No., QR code, Logo)

• Color: Yellow as standard, custom colors available

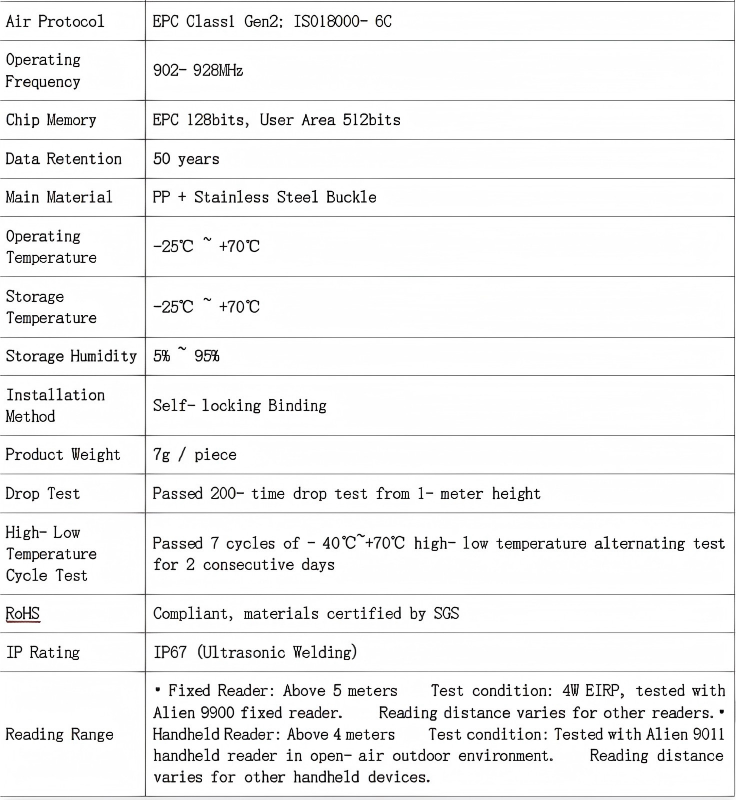

3. RF Parameters (Optional)
✅ HF Version
Frequency: 13.56MHz
Protocol: ISO14443A / ISO15693
Reading Range: 1 ~ 10 cm

✅ UHF Version
Frequency: 860~960MHz Global Band
Protocol: ISO/IEC 18000-63 (EPC Gen2 V2)
Reading Range: 0.5 ~ 5 m

4. Environment Performance
Operating Temp: -20℃ ~ +85℃
Dust-proof, suitable for indoor & outdoor normal environment

5. Applications
Asset tracking, production process control, logistics seal, equipment inspection & traceability.

6. Customization
Chip selection (HF / UHF), size & color, printing content, pre-encoding, package customization.
